Milking Parlor Backflush System

Introduction to the parlour backflush system

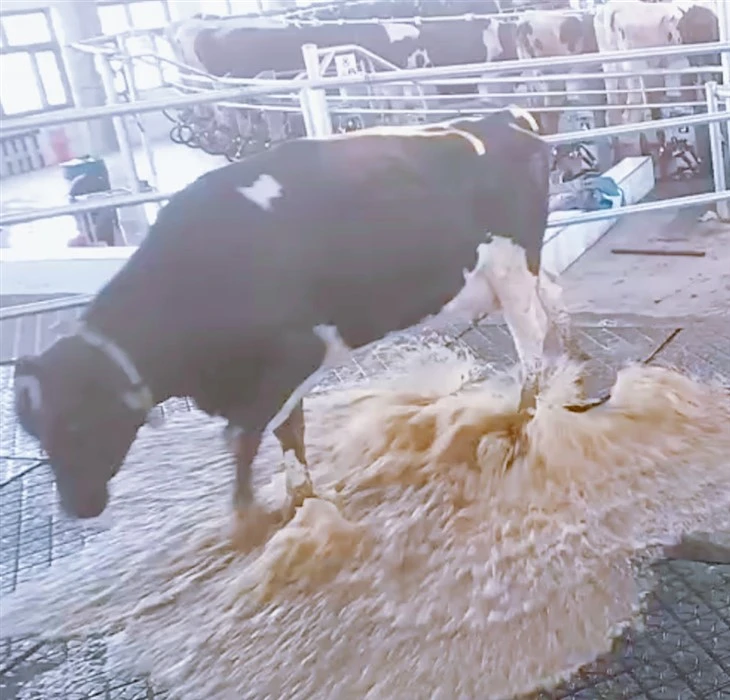

Parlour backflush system Milk hall to be milked hall backwash system for the use of anteroom collected wastewater to wash the hall floor automatic water flushing system, the main components are backwash pumps, outdoor control cabinets, multi-way airbag valves, indoor split control box and so on. The system gradually cleans the area to be squeezed by controlling the opening sequence of airbag valves in the hall to be squeezed, which can be automatically flushed one by one or manually flushed in multiple ways.

The airbag valve independently developed by our company is a patented product (ZL2020 2 0631521.8), the valve body adopts double airbags to increase the stroke of the pressure plate, with the function of quick release/closure of the pipeline, and the airbag skeleton adopts the overall hot-dip galvanized treatment. The airbag valve cover plate adopts 6mm thickness corrugated plate, which can carry cattle trampling.

Serial number

ingredient

Specification

note

1

Control Cabinet Enclosure

Specification: 1850mm×1000mm×500mm, vertical;

Material: 304 stainless steel, rainproof floor cabinet, upper and lower three compartments design;

Insulation measures: top thermal insulation treatment, compartment insulation treatment;

Starting mode: soft start;

Function: with overheating protection, lack of protection, dry burning protection, with its own air source;

Control components: backflush pump (37Kw). Remote control.

2

dual airbag

Imported materials, connection plate 135mm, airbag diameter 189mm, inflatable height 160mm; pneumatic quick-release type, with a rapid release/closure of the pipeline function, the whole hot-dip galvanized treatment. Flush valve inlet diameter of 250, the top of the valve cap with the surrounding ground for the plane. Thickness of the cover plate is 5mm galvanized corrugated sheet.

3

Pumps and coupling devices

250WQ600-37 submersible pump with knife, caliber 250mm, flow rate 600m³/h, head 12m, power 37kw; pump body adopts auto-coupling type installation, connect the conveying pipeline with the coupler base flange, the coupler base is fixed on a special foundation, the pump body can be easily picked up and connected to the pipeline automatically by relying on the coupler climbing guide bar. In addition, all pumps are equipped with hot-dip galvanized lifting chain, through the control of the electric hoist on the gantry can be convenient to lift the heavy pump body for maintenance..

4

Lifting pump gantry

Used for lifting dependent bracket for backflush pump and transfer pump.

Made on site by Party A
