7.5kw Solid Liquid Separator



Model No.	GYFLJ-7.5-1	Pressure	Mechanical Pressure
Type	Chamber Filter Press	Overall Material	SUS304
Power	7.5kw	Length	2400mm
Height	1220mm	Width	1000mm
Weight	720kg	Product Name	Manure Separator Dewatering Machine
Use	Agriculture, Diary Farm	Final Product	Water Residual Less Than 60%
Application	to Remove Water From CowManure	Specification	SUS304
Transport Package	Wooden Case with lron Belts	Origin	Yixian, Baoding, China
Trademark	JG	Production Capacity	5000pieces/Year
HS Code	8421192000





Package Size	254.00cm * 118.00cm * 148.00cm
Package Gross Weight	728.000kg





NO.	Item	Parameter range
1	Overall material	SUS304
2	Motor power	7.5KW
3	Length, width, height	2360MM/970MM/1220MM
3	Maximum throughput	35m³/h
4	Moisture content of solids	<=65%
5	Mesh screen gap	0.75-1.0MM
6	weight	640KG
7	Inlet diameter	Φ100MM
8	Overflow diameter	Φ150MM
9	Drain port diameter	Φ150MM

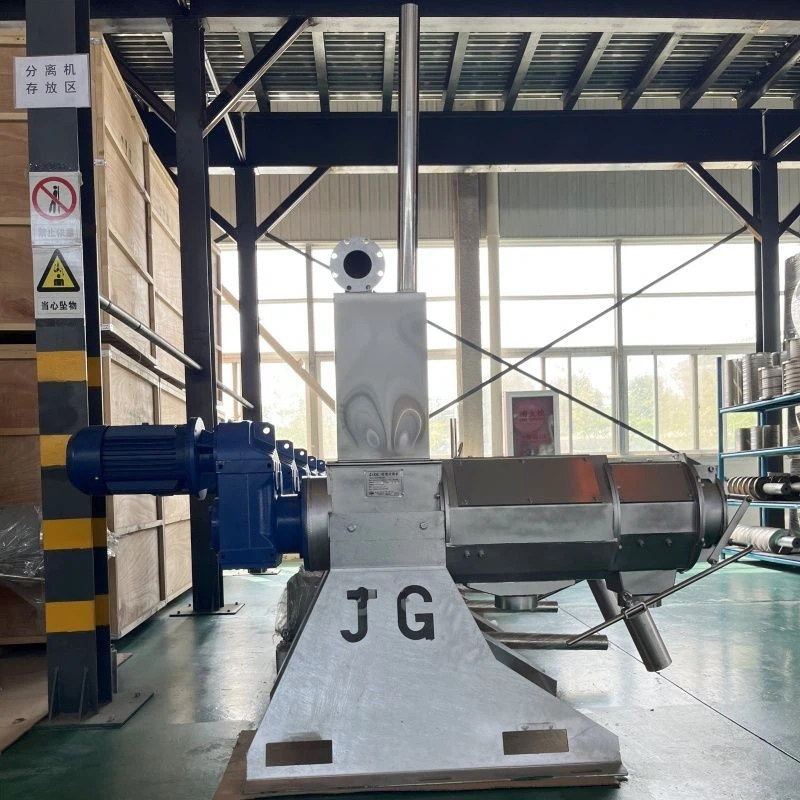

JGFL-7.5 solid-liquid separator is a special equipment for manure treatment, developed and produced by our company, which is mainly to solve the problem of manure treatment and manure reuse difficulties in farms, and then improve the environmental pollution problems of farms and their surroundings. The main body, mesh screen and feeding barrel of the equipment are made of high-quality 304 stainless steel, and the screw shaft is made of high-quality 316 stainless steel with wear-resistant coating, which can ensure the anti-corrosion and delayed service life of the equipment. The transmission part adopts an F-gear reducer to ensure the stability of use.













Hebei Junguang Animal Husbandry Technology Co., Ltd. is a high-tech enterprise specializing in modern pasture design, construction, production and sales of livestock breeding equipment. The company is located in Yi County Economic Development Zone, production workshop 9000 square meters, office complex building and ancillary facilities 3500 square meters. The company specializes in R & D, production of ranch supporting facilities and equipment. Product varieties cover the feeding class, environmental cooling class, manure treatment class, and other special equipment for the pasture, the company's products with cost-effective, good quality advantages to obtain the consistent praise and trust of the pasture.
