Backwash System

Your Professional Backwash System Manufacturer!

Hebei Junguang Animal Husbandry Technology Co., Ltd. was registered and established in 2016, located at Yixian Economic Development Zone, Hebei Province,covering an area of 13300㎡, as the equipment production base. The base was put into production in 2019. The company specialized in the dairy farm equipment production, including cow headlock, cow free stall, ventilation fan, cow brush, cowshed spray system, intelligent manure scraper, manure back flush system, solid liquid separator,bedding recovery system,etc.

Why Choose Us

Our factory

Hebei Junguang Animal Husbandry Technology Co., Ltd. as the production base, located at Yixian Economic Development Zone, with office area 2700㎡, production workshop 6500㎡, and finished product display workshop 3000 ㎡.

Production equipment

Production equipment has welding robot, bending machine, CNC cutting machine, automatic bending machine, lathe and other automatic processing equipment 30 sets.

High quality

The company focuses on the research and promotion of new products. All products are researched with the direction of high efficiency, practicality, durability, energy saving, and cost saving. The company will continuously improve product quality and services to meet the needs of rapidly developing dairy farm industry.

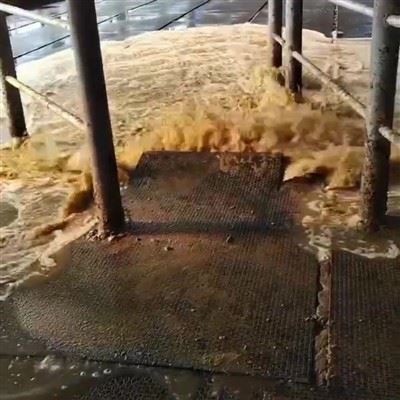

Advantages of Milking Parlor Backflush System

The filtration system is a type of automatic filtration system designed to filter large flows, any water quality, and to satisfy various installations at any time. It has fully automatic filtration, cleaning and sewerage functions. Special-purpose backwash controller, control method with pressure difference sensing and time setting.

A laminated filter containing a spiral structure has a good centrifugal effect. During filtration, the water stream rotates at high speed to remove dirt from the laminations and produce a good filtering effect. Grooved filter laminations serve as the core elements of the filter for more thorough and accurate 3D deep stereoscopic filtering.

Large amount of water treatment, each unit is only a standard unit, through the combination of units to achieve a large flow of processing, combined loading and unloading.

The system automatically coordinates the backwash of each filter unit during backwashing. The backwash unit backwashes with filtered water or external water from other filter units.

System takes up less space and it is lighter.

The system runs stably with low operating costs.

Specification

Products Name	T3 Automatic Self-Clean Filtration System
Filter Unit	2/3/4/5/6 units
Size of Mainfold	4", 6", 8"
Maximum Pressure	10 Bar (140 Psi)
Minimum Backflushing Pressure	1.6 Bar (22 Psi)

How Backflush Systems Work

After milking, the system automatically sprays a sanitizing solution into the teat cup, ensuring it covers all inner surfaces.

The system then flushes the liner with water and, in some cases, compressed air, further cleaning and drying the unit.

Technical Parameter

Item No.	Flow rate(m3/h)
	Water quality
	Very poor	Poor	General	Clean
DFS-D202	20	30	40
DFS-D203	30	45	60
DFS-D204	40	60	80
DFS-D302	20	30	40	60
DFS-D303	3	45	60	90
DFS-D304	40	60	80	120
DFS-D305	50	75	100	150
DFS-D306	60	90	120	180

Item No.	Inlet & outlet Size	Filter unit (pc)	Filtering level	Max working pressure	Minimum backwash working pressure	Water flow(m3/h)		*LWH(mm)*
Item No.	Inlet & outlet Size	Filter unit (pc)	Filtering level	Max working pressure	Minimum backwash working pressure	Mininum	Maximum	*LWH(mm)*
DFS-D201	2"flange(Dn50)	1	70/120/150mesh	10kg/cm2	2.5kg/cm2	10	20	180300600
DFS-D202	3"flange(Dn80)	2				15	40	8001100970
DFS-D203	3"flange(Dn80)	3				25	60	11001100970
DFS-D204	3"flange(Dn80)	4				35	80	13001100970
DFS-D301	3"flange(Dn80)	1				15	30	210330800
DFS-D302	4"flange(Dn100)	2				30	60	8001160990
DFS-D303	4"flange(Dn100)	3				45	85	11001600990
DFS-D304	6"flange(Dn150)	4				60	115	140012101055
DFS-D305	6"flange(Dn150)	5				70	135	170012101055
DFS-D306	8"flange(Dn200)	6				90	180	200012701110
DFS-D307	8"flange(Dn200)	7				105	210	230012701110
DFS-D308	8"flange(Dn200)	8				120	240	260012701110

Packing&Delivery

productcate-822-401

FAQ

Q: What are two advantages of using an automated milking system?

A: Increased efficiency: Milking robots can operate 24/7, allowing for more frequent milking sessions and increased milk production. This can lead to higher milk yields compared to traditional milking methods. 2. Labor savings: Milking robots reduce the need for manual labor in the milking process.

Q: What is the backflush system on a milking cluster?

A: The cluster upstream washing system ( backflush) allows, after every opening of the exit gate of a side of the milking parlor, to wash automatically the clusters. The washing can be done with water only or with water and disinfectant.

Q: What is the difference between backwash and backflush?

A: Backflush, also known as backwash, is water produced in most sand and diatomaceous earth (DE) filtration systems from the self-cleaning process. It is a water flow that moves in reverse through the filter at a higher rate to remove the clogged particles from the filter.

Q: What are the benefits of backwash?

A: This intricate process not only effectively removes impurities and contaminants but also rejuvenates the filter media, ensuring its longevity and sustained efficiency. Automatic backwash filters, a prevalent filtration solution in various industries, play a crucial role in maintaining optimal water quality.

Q: How does a backwash system work?

A: The backwash is an operation in which water passes backward through the filter at a rapid rate. It enters the tank at the bottom via the riser tube, then passes upward through the filter medium, exiting at the top, via the control valve.

As one of the leading backwash system manufacturers and suppliers in China, we warmly welcome you to buy customized backwash system made in China here from our factory. Contact us for more cheap products.
