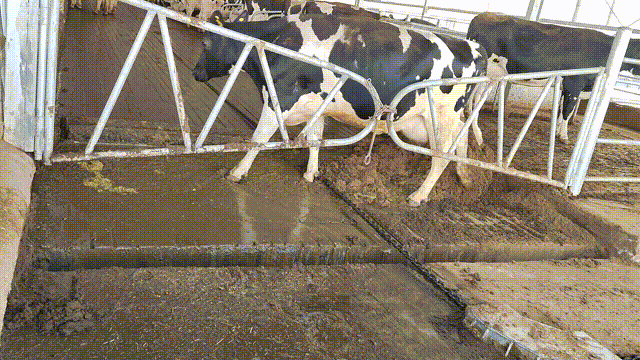

Three Axis Manure Scraper

Model No.

GFB-3-1

Usage

Manure Removal Equipment

Application

Cow

Power Source

Electricity

Blade Type

Straight Teeth

Computerized

Computerized

Certification

1S09001:2008

Condition

New

Warranty

2year, Except for Wearing Part

Motor Brand

Siemens

Power

2.2kw

Reduction Ratio

0.2125

Beam Specifications

100cm*100cm*8cm

Scraper Width

s4.6m

Bridge Guide Rods

1.2m

Abrasion-Resistant Foot Material

Wear-Resistant Steel

Transport Package

Wooden Case with lron Belts

Specification

customize

Trademark

JG

Origin

Yixian,Baoding, China

HS Code

8436990000

Production Capacity

5000pieces/Year

Package Size

143.00cm*143.00cm*180.00cm

Package Gross Weight

1498.000kg

Product Name

Product Picture

Specification Parameters

Remarks

Three-axis steering intelligent scraper host.

Motor brand: imported Siemens;
Power: 2.2kw, reduction ratio: 1:246;
Output shaft: 70mm. A single set of system has a total of 18-wheel steering and maintenance-free corner wheels. It is suitable for manure cleaning trips of more than 120 meters in one direction and dry environments.

Built-in worm gear and worm lifting system.

Straight scraper.

Beam specification: 100*100*8;
Scraper: Width less than or equal to 4.6m.
Wear-resistant foot material: 60Si2Mn.
Bridge guide rod: 1.2m.
Wear-resistant base plate of guide rod: Q345 alloy steel.

Resistant to rolling and deformation.

Three-wheel corner assembly.

Steel plate thickness: 10mm.
T-shaped, anti-twist self-guiding, 45# steel heat treatment, maintenance-free. Axis diameter: 30mm, three-axis force separation, graphite lubrication.

Patented technology. Adopting multi-axis force separation technology can achieve three years of maintenance-free operation.

control system

Foolproof operation. Double-layer anti-corrosion protection. Stainless steel control box. Equipped with dual intelligent distance recognition modes (Hall sensor and current detection). Reliable in use. Intelligent recognition of mid-way resistance and end resistance.

Patented technology.

NO.

Common faults

Possible factors for malfunction

Solution

1

The manure passage is not cleaned thoroughly, and there is residual manure on the passage.

Severe wear of wear-resistant rubber strips in contact with the ground

Move the rubber strip downward, or contact the manufacturer for replacement.
Regularly check the wear of rubber strips

2

During the process of retracting the scraper, the lifting height was too low, causing retreat with manure.

The scraper operates for a long time, and the wear-resistant feet are severely worn, causing the height of the support too low during the scraper retraction.

Contact the manufacturer to replace the wear-resistant feet.
Regular inspection and maintenance.

3

Code: E.ocA
Overcurrent during accelerated operation

Check if there are foreign objects stuck in the corner wheel or chain, which causing overload and shutdown protection.
The motor or reducer is damaged

Inspect all parts and remove foreign objects.
Repair or replace the motor reducer.

4

Code: E.ocb
Instantaneous overcurrent during startup

5

Code: E.ocn
Overcurrent during constant speed operation

6

Code: AE DCL
DC bus under voltage

There is fault in the distribution power supply or input/output cables.

Professional personnel inspect and repair the distribution power supply;
Check and replace the input or output cables of the control box.

7

Code: AE PLI
Power input phase loss

8

Code: AE PLO
Motor output phase loss

9

Code: E HR1
Abnormal U-phase sensor

The frequency conversion module is damaged

Contact the manufacturer for repair or replacement

10

Code: E HR2
Abnormal V-phase sensor

11

Code: EFOP
Inverter module protection

12

Code: EOHI
heatsink overheat

The ambient temperature of the control box is too high;
Dust or foreign objects blocking the heat dissipation holes, resulting in poor ventilation of the radiator.

Replace the installation position of the control box;
Improve the ventilation of the radiator.

13

Code: AE CFE
Communication abnormality

Loose communication cable plug between display screen and motherboard;
Damaged display screen

Check the communication cable plug;
Contact the manufacturer to replace the display screen.

Reminder: It is strictly prohibited to connect electricity from the scraper control box for other external devices, otherwise it will cause serious damage!
