Air Exchange Ventilation Fan

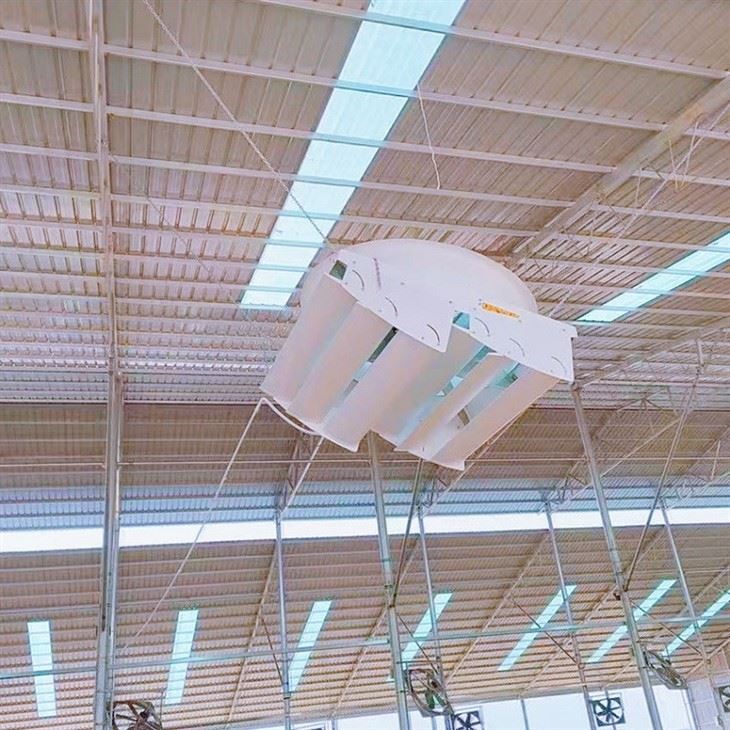

This is a large fan used in animal husbandry scenarios. The wind turbine installed above the bed has a relatively simple structure and does not include a variable frequency controller. It mainly provides ventilation and air exchange for the livestock resting area, improves the air environment, and promotes comfortable rest for livestock. The large fan installed in the milking parlor is equipped with a variable frequency controller, which can adjust the speed as needed, and can more accurately control the air circulation and temperature and humidity in the milking parlor, ensuring the hygiene and comfort of the milking environment and ensuring the smooth progress of milking work.
- Product Introduction
This is a large fan used in animal husbandry scenarios. The wind turbine installed above the bed has a relatively simple structure and does not include a variable frequency controller. It mainly provides ventilation and air exchange for the livestock resting area, improves the air environment, and promotes comfortable rest for livestock. The large fan installed in the milking parlor is equipped with a variable frequency controller, which can adjust the speed as needed, and can more accurately control the air circulation and temperature and humidity in the milking parlor, ensuring the hygiene and comfort of the milking environment and ensuring the smooth progress of milking work.
Parameters:
|
Parameter Category |
Parameter |
Parameter values/specifications |
|
Material and Structure |
Shell material |
Corrosion resistant fiberglass material |
|
Size and weight |
Overall dimensions of the host |
2m×2m×1.1m |
|
Whole machine weight |
170kg |
|
|
dynamical system |
MOTOR |
380V,2.2Kw,300r/min |
|
transmission |
Heavy duty pulleys and bearings |
|
|
Fan blade design |
Fan blade material and quantity |
Aluminum 6-blade |
|
performance parameter |
Unidirectional ventilation coverage area |
360square meters(30m×12m) |
|
Air volume |
>93000m³/h |
|
|
control system |
Inverter control box |
Support speed regulation of 50-300r/min |
|
Quantity of supporting facilities (installation in the milk hall) |
6-8 units/set |
