Stainless Steel Electric Heating Water Trough

36V Electric heating drinking water tank

Specification 4000 * 500mm, capacity 300L, inner liner made of 304 stainless steel, outer liner made of 201 stainless steel, plate thickness 1.2mm. It is divided into two parts: the sink and the control box. The material of the control box is stainless steel. Using low-voltage heating technology, the voltage is converted from 220V to 36V and heated through three heating plates at the bottom, with a total power of 2400W.

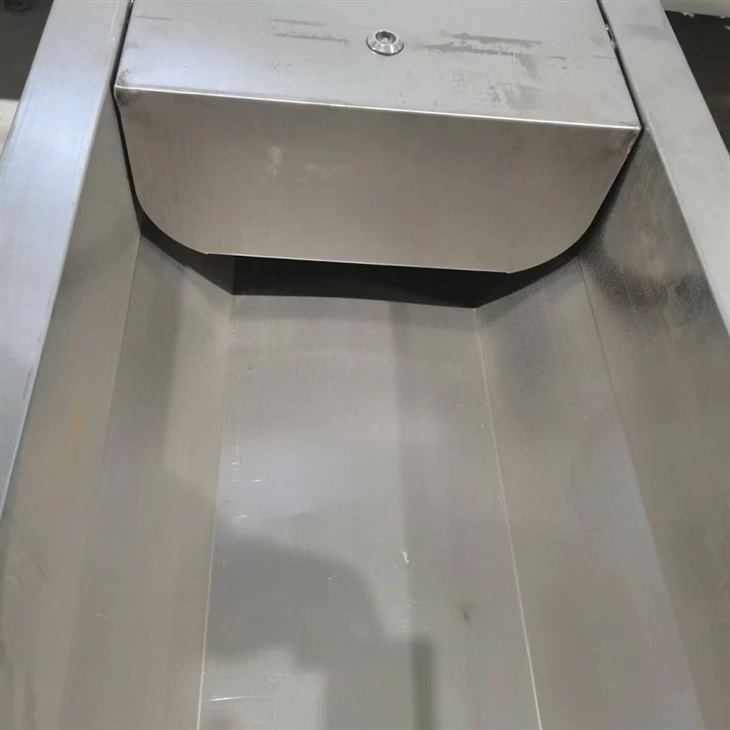

Realistic picture

parameter

remarks

Heating device: 3 bottom heating plates, total power 2400W, 36V; Has anti dry burning function;

The drain ball valve is not included in the warranty as a sink accessory.

component

Product photos

Parameter description

remarks

Stainless steel sink

Technical parameters: Material: 304 stainless steel plate, plate thickness ≥ 1.2mm. Length 4.0m, upper width 50cm, lower width 20cm; 30cm deep with drain hole. The horizontal bracket is welded with galvanized pipes and can be disassembled,

Ensure that 6 cows drink water at the same time, with one end of the sink receiving water at a flow rate of ≥ 120 liters/minute. A continuous crossbeam with a 70mm drainage hole is installed below the sink, with the drainage hole located at one end of the sink and installed with a slope.

Silicone heating strip

Electric heating with controllable temperature, using a silicone heating plate located on the outer side of the sink

Effectively ensuring uniform and rapid heating of the sink as a whole.

Customized liquid level controller for drinking water tank

Built in high-quality liquid level control valve, which can accurately control the liquid level height. The liquid level control valve has a one-year warranty and a service life of up to 3 years.

The built-in liquid level control valve can effectively prevent damage to the float valve caused by the large shaking of the water surface when cows drink and play in water.

order

Product photos

parameter description

remarks

Hot dip galvanized sheet drinking water tank

Material: Q235 steel plate, plate thickness ≥ 3mm. Length 4.0m, upper width 50cm, lower width 20cm; 30cm deep with drain hole. Both the vertical legs and horizontal tension beams are made of hot-dip galvanized steel pipes, which are detachable.

One end of the sink is filled with water, with a flow rate of ≥ 120 liters/minute. A horizontal beam with a drainage hole is installed below the sink, and the drainage hole is located at one end of the sink.
