Single Axis Manure Scraper

Model No.

GFB1-1

Usage

Manure Removal Equipment

Application

Cow

Power Source

Electricity

Blade Type

Straight Teeth

Computerized

Computerized

Certifcation

IS09001:2015

Condition

New

Warranty

2year, Except for Wearing Part

Motor Brand

Siemens

Power

1.5kw

Reduction Ratio

0.2125

Beam Specifications

100cm*100cm*8cm

Scraper Width

1∽5.2m

Bridge Guide Rods

1.2m

Abrasion-Resistant Foot Material

Wear-Resistant Steel

Transport Package

Wooden Case with lron Belts

Specification

customize

Trademark

JG

Origin

Yixian, Baoding, China

HS Code

8436990000

Production Capacity

5000pieces/Year

Package Size

118.00cm*95.00cm*180.00cm

Package Gross Weight

773.000kg

Wear-resistant feet for scraper return: 60Si2Mn spring steel, heat-treated. The service life is more than five times higher than that of ordinary casting materials.

Corner wheel: T-shaped, precision-machined heat-treated 45# steel wheel. It prevents chain twisting and self-guides to the driving wheel.

Chain: High-strength, wear-resistant and corrosion-resistant 25MnV chain. After secondary stretching treatment, the heat-treated breaking force is greater than 25 tons.

Frost protection: It has a low-temperature frost-proof adaptive function.

Cow protection facilities: No impact recognition distance. It has a self-memory function after power failure.

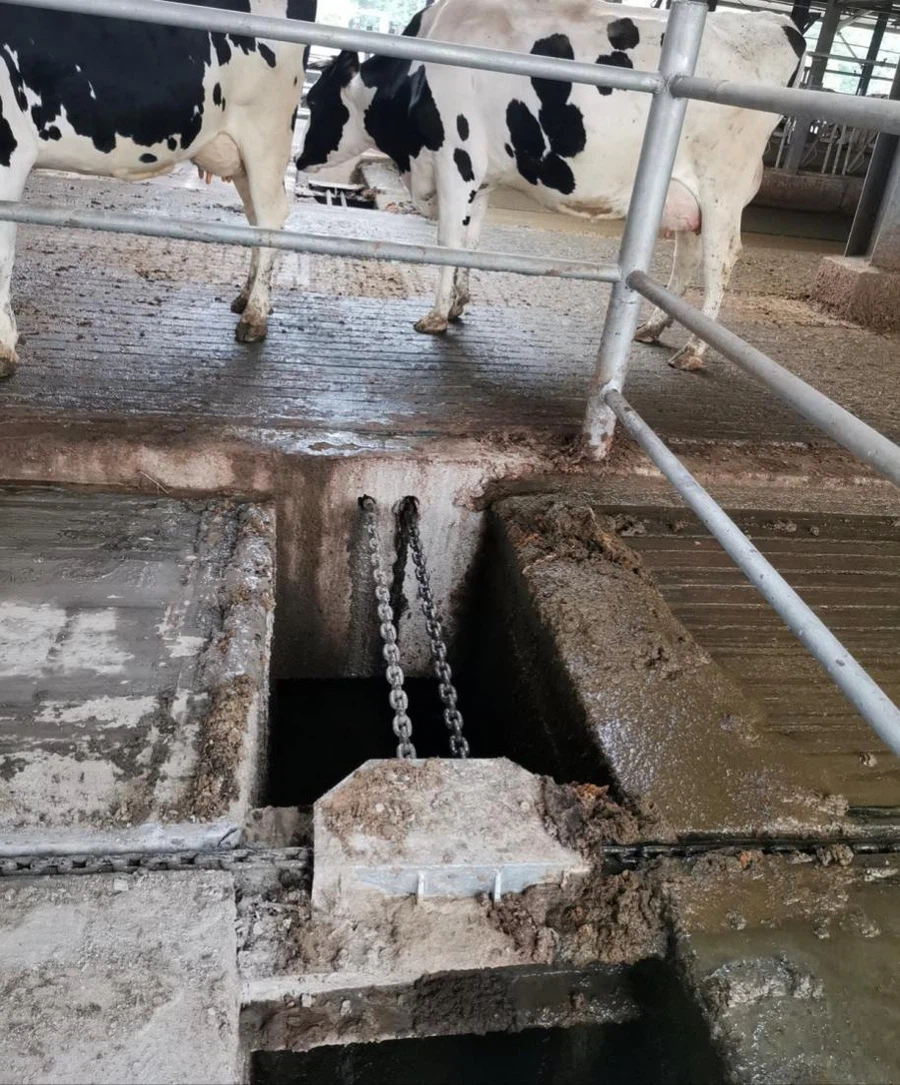

When there is a manure ditch in the middle of the cowshed, a shared corner wheel needs to be installed at the manure ditch. During the construction of the manure ditch, H-shaped steel needs to be embedded in advance as the foundation for the shared corner wheel.

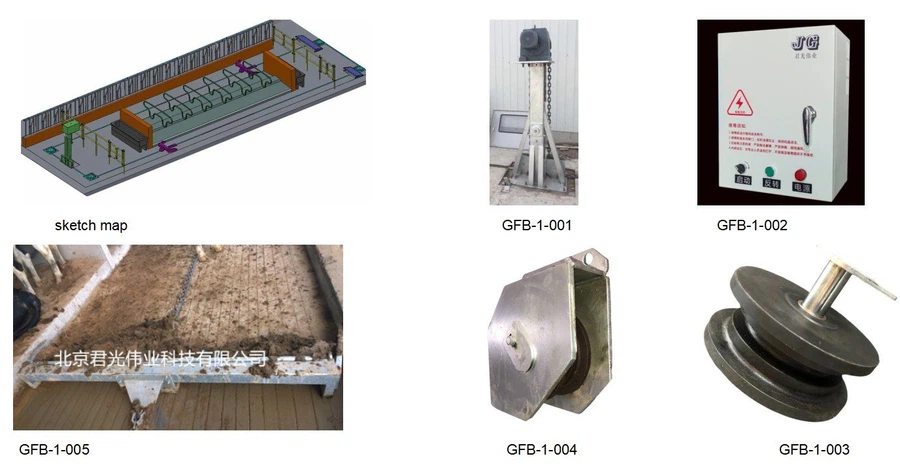

Product Name

Product Picture

Specification Parameters

Remarks

Single-axis steering intelligent scraper host.

Power:1.5kw;

Reduction ratio:1:246.
Output shaft: 60mm.

A single set of system has a total of 6-wheel steering and maintenance-free corner wheels.

It is suitable for manure cleaning trips of less than 120 meters in one direction and in dry environments.

Built-in worm gear and worm lifting system.

Straight scraper.

Beam specification: 100*100*8mm;
Scraper: Width less than or equal to 4.6m.
Wear-resistant foot material: 60Si2Mn.
Bridge guide rod: 1.2m.
Wear-resistant base plate of guide rod: Q345 alloy steel.

Resistant to rolling and deformation.

Corner assembly

Steel plate thickness: 10mm,
T-shaped, anti-twist self-guiding, heat-treated 45# steel, maintenance-free.
Axle center diameter: 30mm, graphite lubrication.

Adopting maintenance-free technology enables two years of maintenance-free operation.

control system

Foolproof operation. Double-layer anti-corrosion protection. Stainless steel control box. Equipped with dual intelligent distance recognition modes (Hall sensor and current detection). Reliable in use. Intelligent recognition of mid-way resistance and end resistance.

Patented technology.

NO.

Common faults

Possible factors for malfunction

Solution

1

The manure passage is not cleaned thoroughly, and there is residual manure on the passage.

Severe wear of wear-resistant rubber strips in contact with the ground

Move the rubber strip downward, or contact the manufacturer for replacement.
Regularly check the wear of rubber strips

2

During the process of retracting the scraper, the lifting height was too low, causing retreat with manure.

The scraper operates for a long time, and the wear-resistant feet are severely worn, causing the height of the support too low during the scraper retraction.

Contact the manufacturer to replace the wear-resistant feet.
Regular inspection and maintenance.

3

Code: E.ocA
Overcurrent during accelerated operation

Check if there are foreign objects stuck in the corner wheel or chain, which causing overload and shutdown protection.
The motor or reducer is damaged

Inspect all parts and remove foreign objects.
Repair or replace the motor reducer.

4

Code: E.ocb
Instantaneous overcurrent during startup

5

Code: E.ocn
Overcurrent during constant speed operation

6

Code: AE DCL
DC bus under voltage

There is fault in the distribution power supply or input/output cables.

Professional personnel inspect and repair the distribution power supply;
Check and replace the input or output cables of the control box.

7

Code: AE PLI
Power input phase loss

8

Code: AE PLO
Motor output phase loss

9

Code: E HR1
Abnormal U-phase sensor

The frequency conversion module is damaged

Contact the manufacturer for repair or replacement

10

Code: E HR2
Abnormal V-phase sensor

11

Code: EFOP
Inverter module protection

12

Code: EOHI
heatsink overheat

The ambient temperature of the control box is too high;
Dust or foreign objects blocking the heat dissipation holes, resulting in poor ventilation of the radiator.

Replace the installation position of the control box;
Improve the ventilation of the radiator.

13

Code: AE CFE
Communication abnormality

Loose communication cable plug between display screen and motherboard;
Damaged display screen

Check the communication cable plug;
Contact the manufacturer to replace the display screen.

Reminder: It is strictly prohibited to connect electricity from the scraper control box for other external devices, otherwise it will cause serious damage!
