Three Axis Scraper Plate

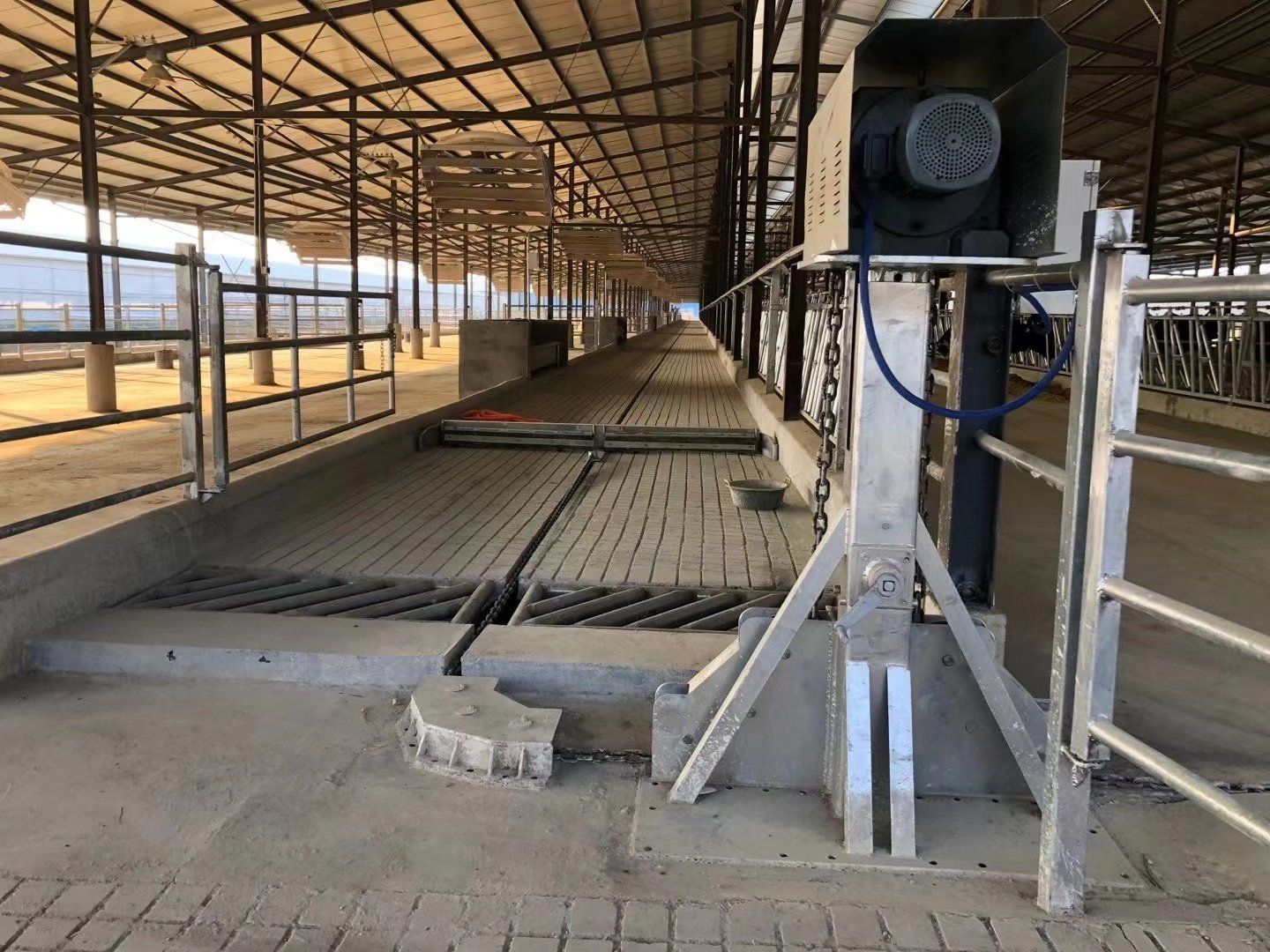

The three-axis scraper is an automated manure cleaning equipment designed specifically for large-scale breeding farms, which achieves closed-loop cleaning of the manure channel through a three-axis drive system. Its core functions include:

Closed loop manure cleaning: The scraper is driven by a motor chain to form a closed loop. When one group of scrapers moves forward for manure cleaning, the other group automatically lifts back to its original position, achieving continuous operation.

Intelligent control: supports functions such as antifreeze protection, overload shutdown, and travel display. The operating frequency and interval time can be set through the touch screen.

Efficient cleaning: The scraper is tightly attached to the manure duct, and is combined with rubber rollers to reduce friction, resulting in a lower residual cleaning rate than traditional dual axis equipment.

Mechanical structure and technological advantages

Three axis drive system: adopting a force type three-axis corner wheel design, with a shaft diameter of 30mm, and achieving 3-year maintenance free lubrication through graphite, significantly reducing chain wear.

Material optimization: The scraper is made of hot-dip galvanized Q235 steel, and the chain is made of 13mm manganese steel, which improves corrosion resistance by more than 50%.

Dynamic adjustment: Equipped with a tensioning system to automatically compensate for chain elongation and avoid the risk of chain detachment.

Comparison with traditional equipment

Efficiency improvement: The three-axis structure has greater traction, with a 35% increase in single cleaning coverage area compared to the dual axis equipment, and adjustable operating speed (1-6 meters/minute).

Stability enhancement: Multi axis force technology reduces slippage and lowers failure rate by 60%.

Wide adaptability: Customizable scraper size, suitable for different widths of manure ducts, especially for large-span scenes such as cowsheds.

Application scenarios and installation requirements

Applicable scenarios: Large dairy farms, multi story pigsties, and other places that require high-frequency manure cleaning.

Installation conditions: U-shaped channel steel tracks need to be pre embedded, and the cement surface of the manure duct needs to be pressed to ensure smooth sliding of the scraper.

Future Development Trends

With the popularization of intelligent farming, the three-axis scraper is integrating IoT technology, such as remote monitoring and energy consumption analysis, to further promote cost reduction and efficiency improvement in breeding farms.
