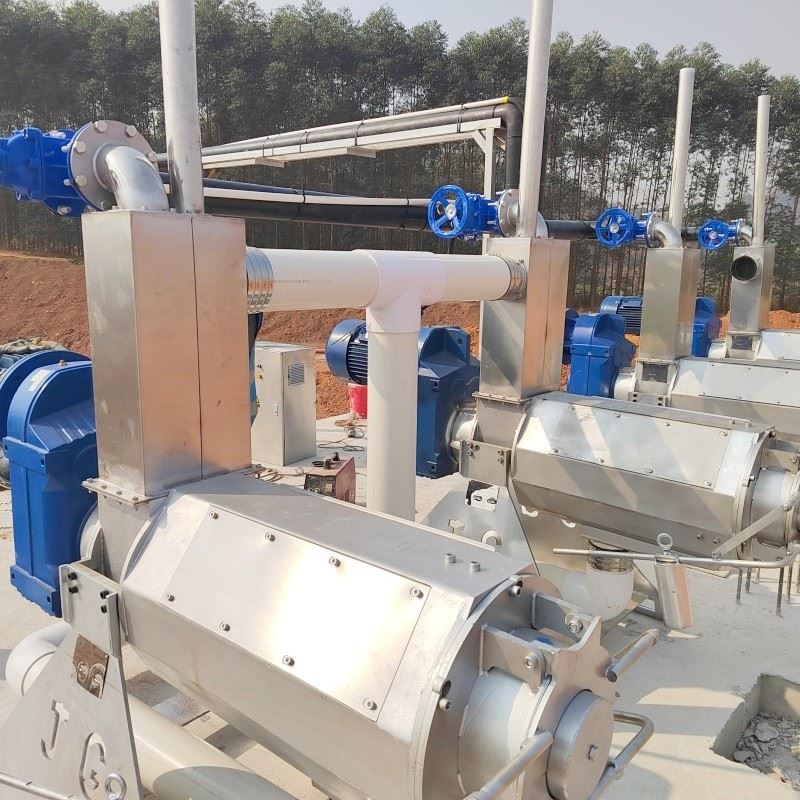

11 Kw Manure Separator Dewatering Machine
The feeding port, feeding port base, and screen outer barrel are made of 304 stainless steel material, and the bracket is made of carbon steel. The motor power is 11KW. Require a solid content of 5% -25% for the material, and process 18-25 cubic meters of cow manure material per hour. After separation, the solid moisture content should be 60-65%
- Product Introduction
|
Basic Info. |
|||
|
Model No. |
GYFLJ-11 |
Pressure |
Mechanical Pressure |
|
Type |
Chamber Filter Press |
Overall Material |
SUS304 |
|
Power |
11 kw |
Length |
2400mm |
|
Height |
1220mm |
Width |
1000mm |
|
Weight |
720kg |
Product Name |
Manure Separator Dewatering Machine |
|
Use |
Agriculture, Diary Farm |
Final Product |
Water Residual Less Than 60% |
|
Application |
to Remove Water From CowManure |
Specification |
SUS304 |
|
Transport Package |
Wooden Case with lron Belts |
Origin |
Yixian, Baoding, China |
|
Trademark |
JG |
Production Capacity |
5000pieces/Year |
|
HS Code |
8421192000 |
|
|
|
Packaging & Delivery |
|
|
Package Size |
254.00cm * 118.00cm * 148.00cm |
|
Package Gross Weight |
728.000kg |
Parameter:
|
NO. |
Product images |
name |
Specifica tions |
quan tity |
remarks |
|
1 |
|
Solid liquid separator casing and motor reducer |
11KW |
1 |
The feeding port, feeding port base, and screen outer barrel are made of 304 stainless steel material, and the bracket is made of carbon steel. The motor power is 11KW. Require a solid content of 5% -25% for the material, and process 18-25 cubic meters of cow manure material per hour. After separation, the solid moisture content should be 60-65% |
|
2 |
|
Control box |
1 |
It can simultaneously control the solid-liquid separator with a capacity of 11kw, the mixing pump with a capacity of 5.5kw, and the extraction pump with a capacity of 5.5kw. All electrical components are of the Chint brand and have overvoltage and undervoltage protection, line leakage protection, thermal relay (overload) protection, and phase failure and phase loss protection. |
|
|
3 |
|

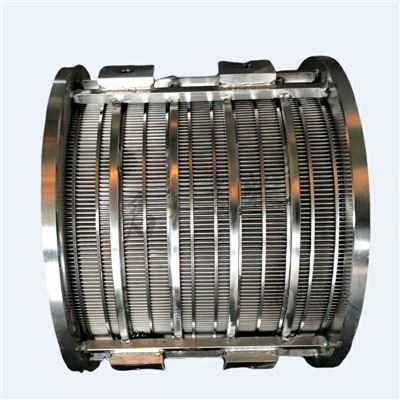

Front screen |
Screen gap,1.0mm |
1 |
Installed at the end of the solid-liquid separator material process, mainly used for secondary squeezing and water filtration in the later stage of the material. 304 stainless steel material. |
|
6 |
|
Rear screen |
Screen gap,1.2mm |
1 |
Installed at the front end of the solid-liquid separator material process, mainly used for rapid squeezing and filtering of water in the early stage of the material. 304 stainless steel material |
|
7 |
|
screw |
screw 260mm |
1 |
316 stainless steel material, coated with high wear-resistant coating and soft wear-resistant material. |
|
8 |
Fixing clips |
Fixing clips |
Other parameter list:
|
No. |
Item |
Parameter range |
|
1 |
Main material |
304 stainless steel |
|
2 |
Motor power |
11KW |
|
3 |
Length, width, height |
2400MM/780MM/1620MM |
|
3 |
Processing capacity |
18-25m ³/h (variable frequency adjustable) |
|
4 |
Solid moisture content |
60%-65% |
|
5 |
Screen gap |
1.0-1.2MM |
|
6 |
weight |
720KG |
|
7 |
Inlet diameter |
Φ100MM |
|
8 |
Overflow port diameter |
Φ150MM |
|
9 |
Discharge port diameter |
Φ150MM |
Feature
|
The output solids have low moisture content, and the waste needs secondary filtration |
|
The equipment is made of stainless steel with good anti-corrosion performance |
